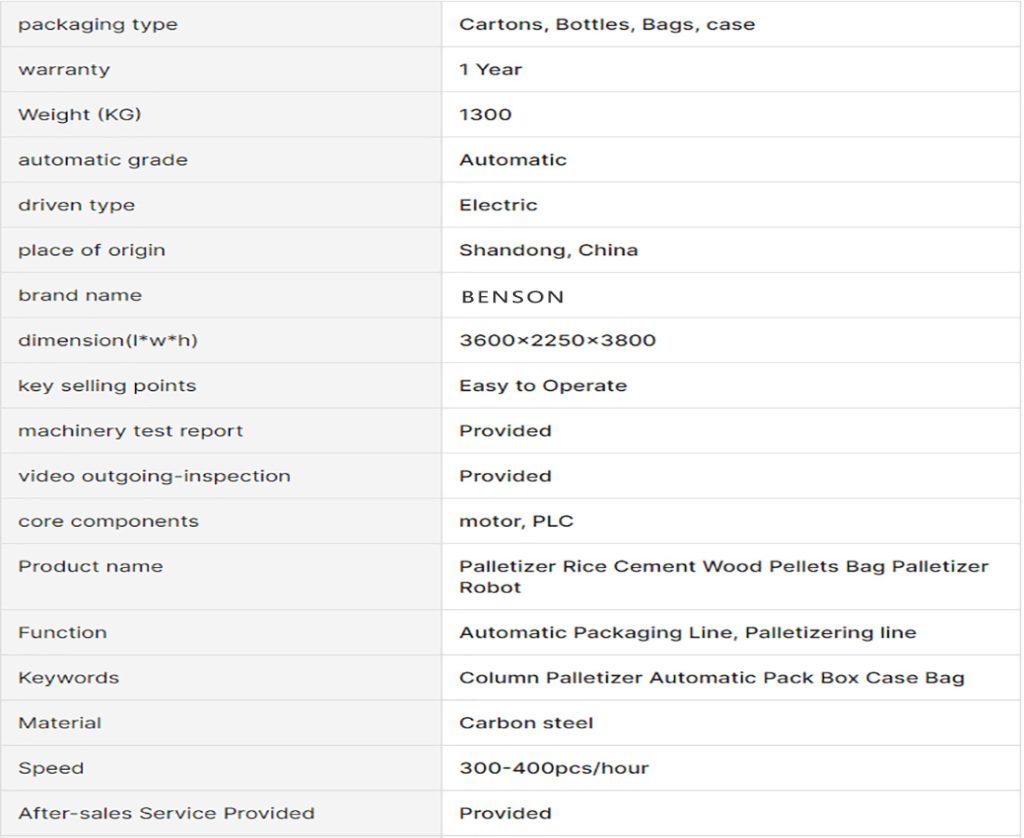

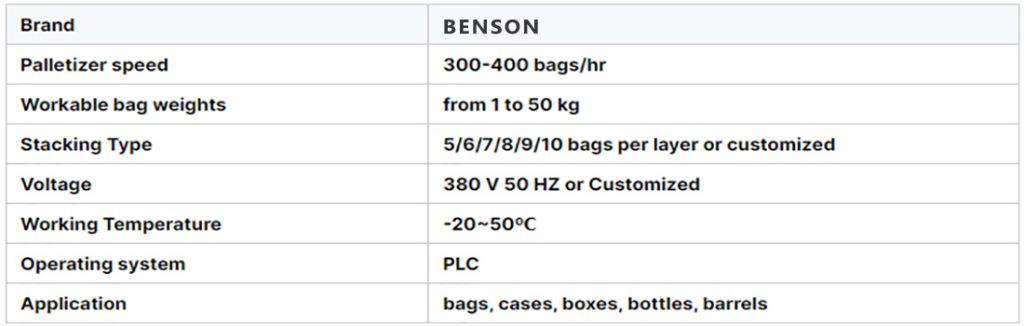

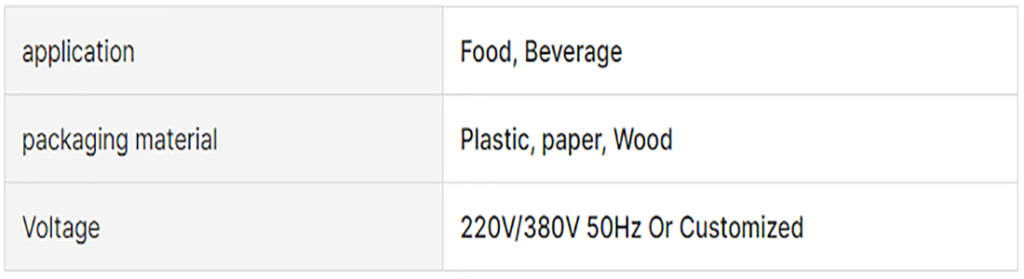

Other attributes

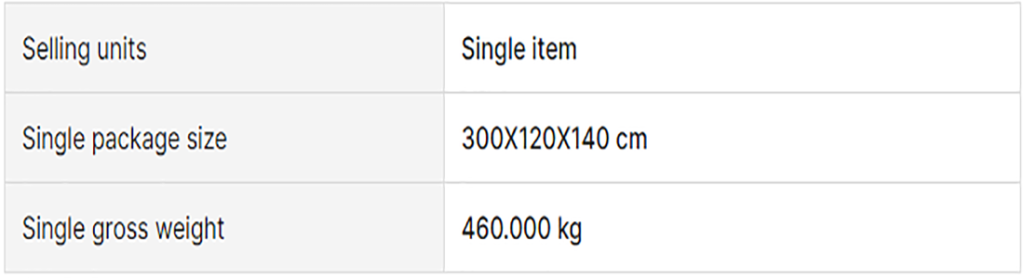

Packaging and delivery

Product descriptions from the supplier

Equipment composition

• Weighing equipment: It adopts high-precision weighing sensors and advanced weighing control systems, which can quickly and accurately weigh the product weight, and has functions such as automatic peeling and zero point tracking to ensure 5Kg weighing accuracy.
• Packaging machine: Different types are selected according to product characteristics and packaging requirements, such as bag-feeding packaging machines, three-side sealing or four-side sealing packaging machines, etc., which can realize automatic bag picking, filling, sealing, labeling and other functions.
• Single-column palletizer: The entire system is supported by a single column, with a compact structure and a small footprint. The products are picked up and stacked on the pallet by the automated robot arm. It can operate at high speed and complete efficient palletizing in a small space. It is widely used in many industries.

MACHINE SHOW

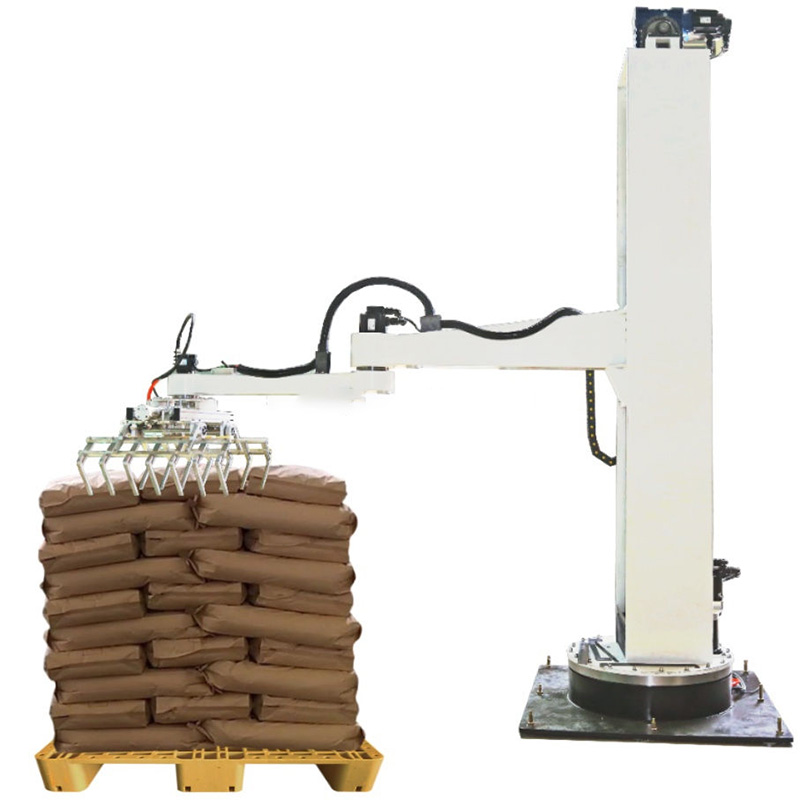

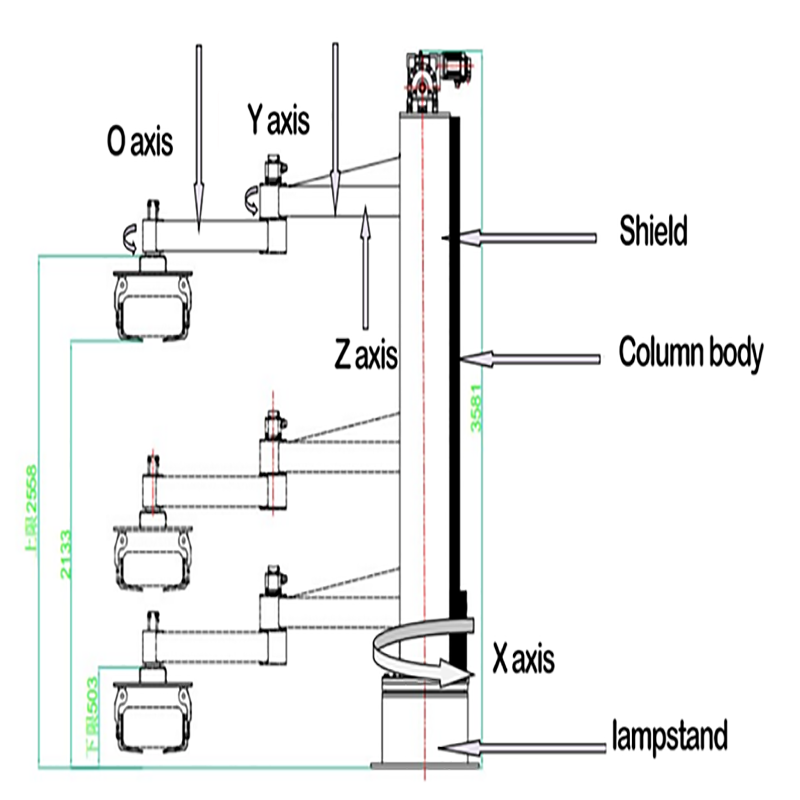

Column palletizer

•Fast palletizing speed and stable palletizing can greatly save labor costs.
•Small size saves space and is convenient for transportation

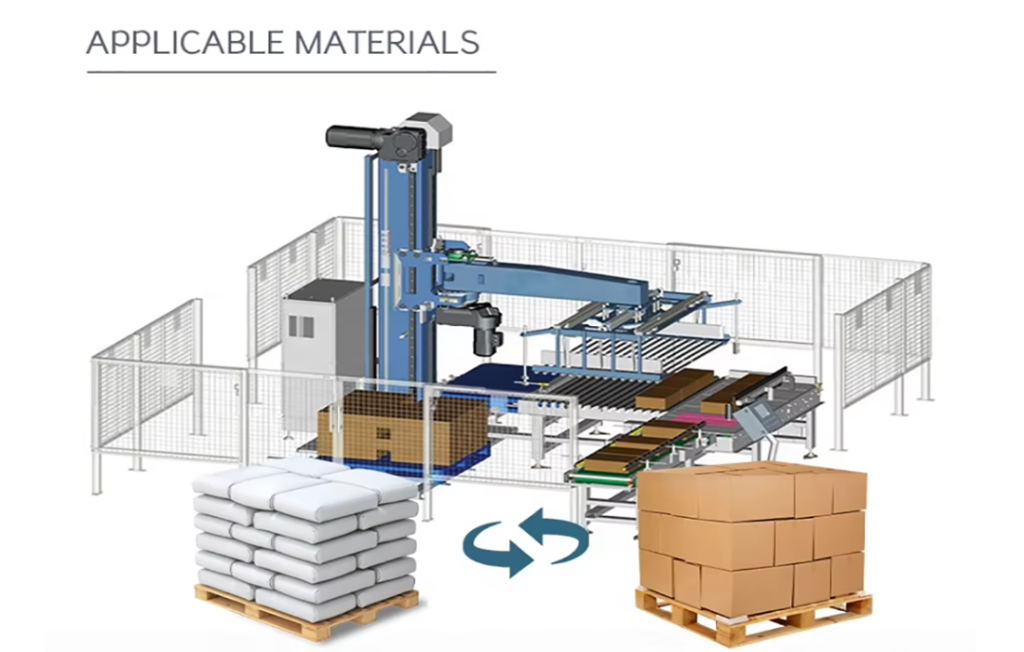

•Can be used for palletizing bags, cases, boxes, bottles and barrels

•The palletizing process is fully automated without manual intervention

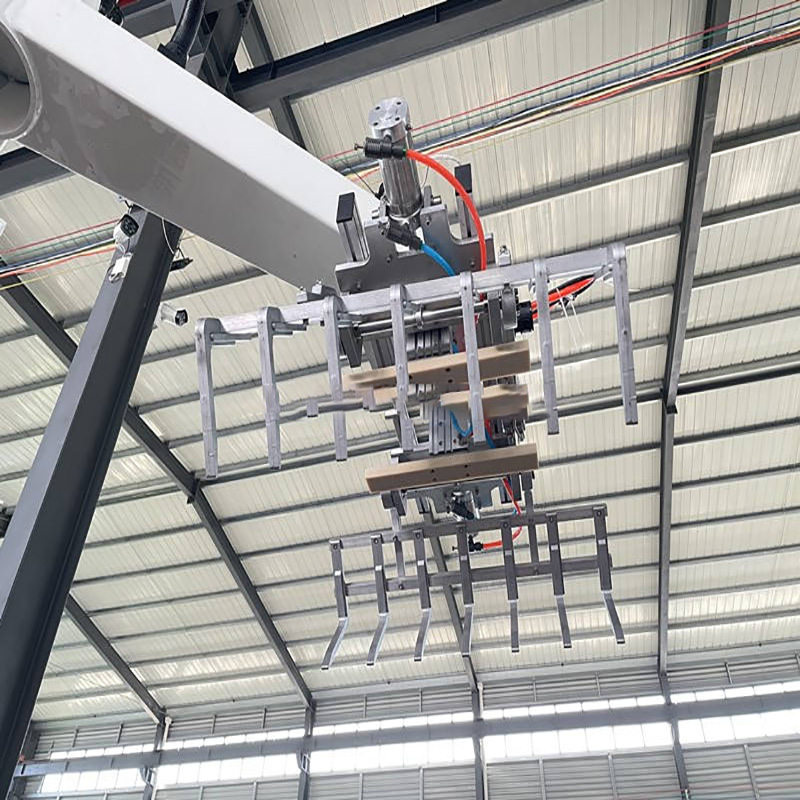

Gripper

Pneumatic drive, sturdy, lightweight, and flexible
Customizable grippers for grabbing bags, cases, bottles, barrels

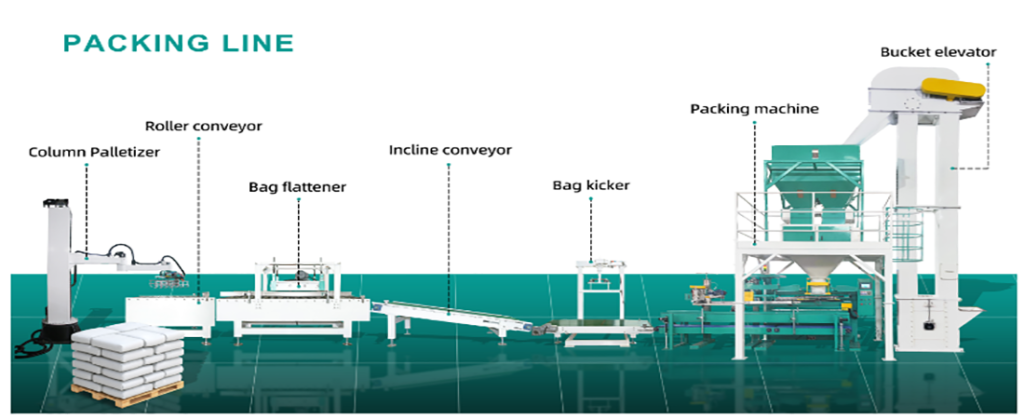

Bag Kicker

Standing bags are transported to this position, and through the detection of photoelectric switches, it is judged whether the bag has reached the position of pushing the bag. After arriving, the cylinder works and kicks the bag down to a horizontal state and transports it to the Incline Conveyor.

Incline Conveyor

The Incline conveyor is mainly used for the transportation of the product. Inclined conveying makes the material inside the bag flat, ready for the next step of shaping and at the same time play the role of cache packing bags .

Bag Flattener

The bag is shaped and flattened by the square roller vibrating conveyor , so that the stacking shape is neat and secure,The shaping conveyor can open a certain distance between the products, which is convenient for photoelectric detection and subsequent palletizing.

Roller Conveyor

The bag is conveyed to the Roller Conveyor, the sensors on both sides will detect the bag, stop the conveying and link the palletizer to grab the bag.

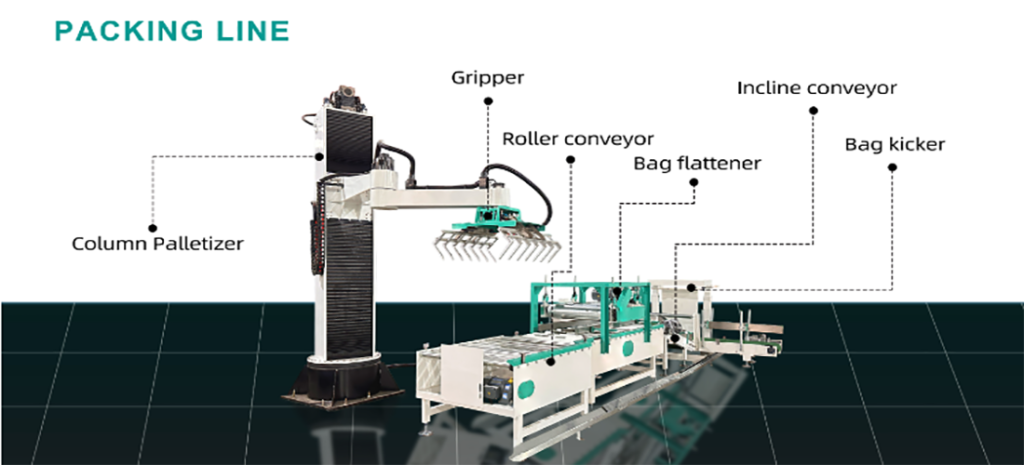

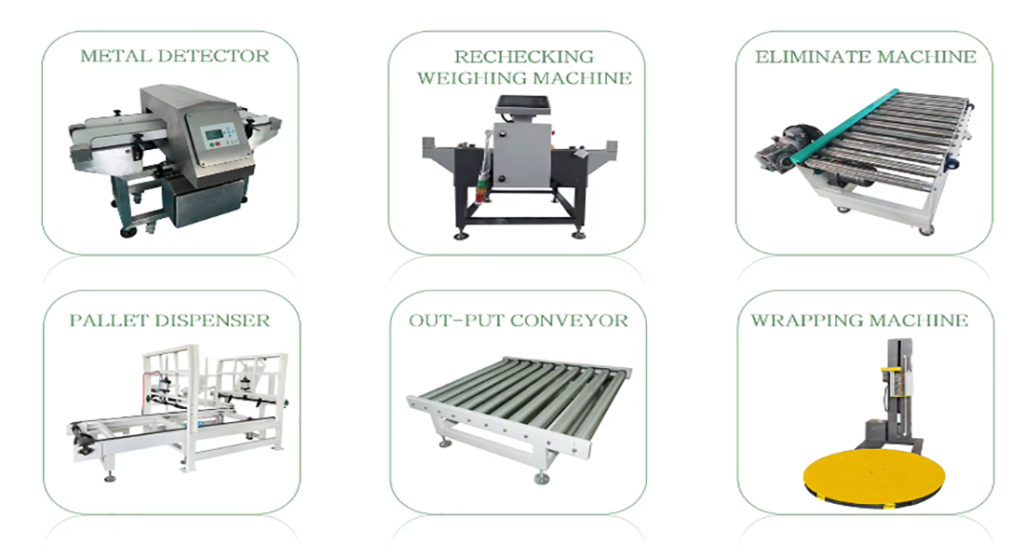

MACHINE COMPONENTS

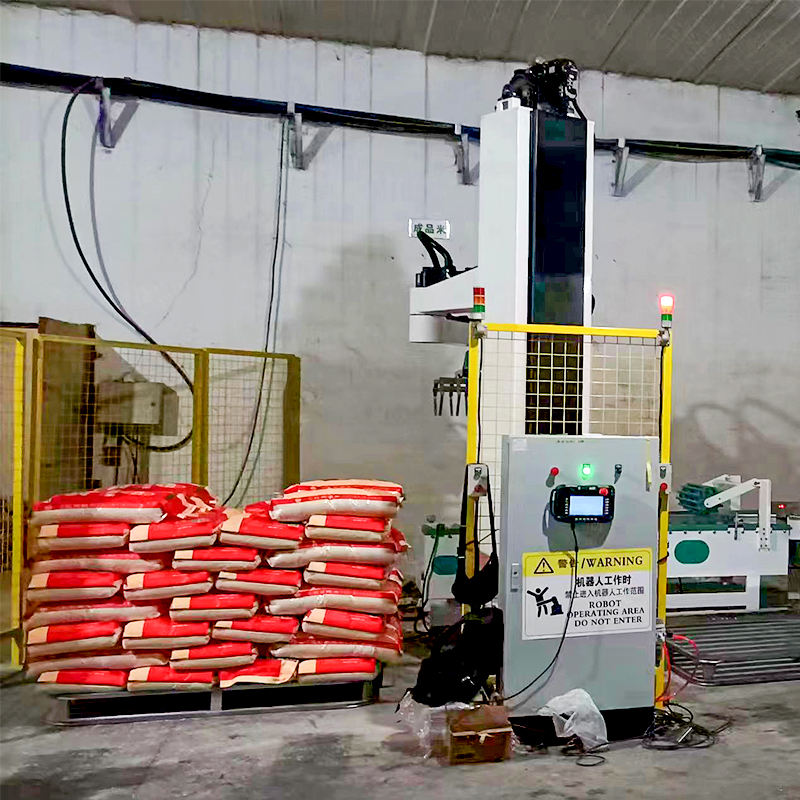

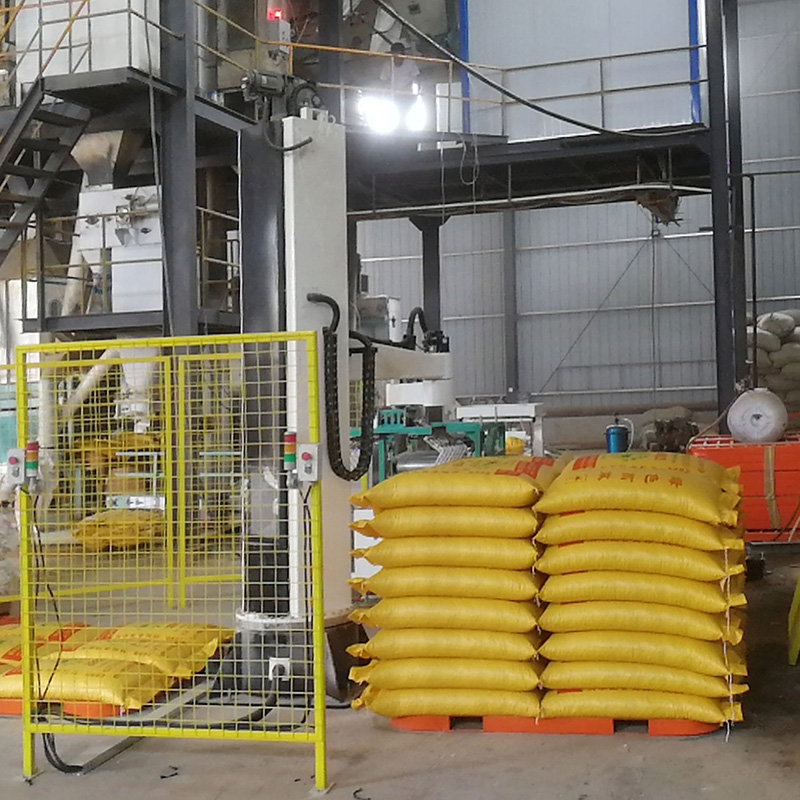

PROJECT SHOW

COMPANY PROFILE

BENSON Intelligent Equipment (Shandong) Co., Ltd. is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals. The company actively promotes the development model of “production, learning and research” and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering. Its capabilities and various technical indicators are at a high level. In order to comprehensively improve its market competitiveness, the company has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, BENSON Intelligent Equipment (Shandong) Co., Ltd. can fully provide system technical solutions and precision manufacturing of equipment. At the same time, we have a complete after-sales service system to provide you with high-quality technical support and after-sales service.

PACKAGING & DELIVERY

Production workshop

FAQ

Q1: Are you factory or trading company?
A1: We are the factory, we doing this line for more than 5 years.
Q2: How to choose suitable packaging machine?
A2: Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How to ensure the quality of the machine?
A3: We usually delivery the machine after successful inspection in our factory. We have our own quality control department,beforethe delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q4: How to install the equipment?
A4: We will provide manuals and detailed videos to help customer install machine.
